Firewalls

Firewalls

• Firewalls and the implementation of Management Policy plus proactive security methods
• Management Policy can include
  • Network Services allowed to run, and under what conditions
  • Client access to external resources
  • Quality of service
  • Security and maintaining availability

Corporate Firewalls

• Cisco PIX
• Cisco router ACLs
• Linux router iptables
• PIX syntax is strange, yet PIX solutions are popular!
• ACLs are weak for policy implementations
• iptables is powerful but uncommon.

Linux Firewalls

• Security issues which Linux firewalls can deal with:
  • Denial of service
  • Differences between external and internal users
  • Hiding local-only services
  • Traffic management
  • Virus and hacking protection
  • Implementing management policy
• Rules are needed in terms of packets arriving, leaving, and passing through.

iptables

• Since kernel 2.4, the standard interface for firewall configuration is iptables.
• It implements its rules using many "tables"
  • Filter - handles standard "firewall" things
  • NAT - rewriting of source/destination IPs
  • Mangle - specialised hacking of packet info
  • RAW - low-level modifications to packets
• Most firewalls only need to be involved with the filter table

Chains

• Within each table is a number of chains.
• Think of each table as containing different types of rules you might want to use (like "filter" rules).
• Think of chains as defining WHEN a packet will have those rules applied to them.
• Chains are done in a particular order.
• Some packets only go to some chains and not others (depending on how the packet was made).

Chain Names

• Some chain names you might see are
  • PREROUTING
  • INPUT
  • OUTPUT
  • FORWARD
  • POSTROUTING

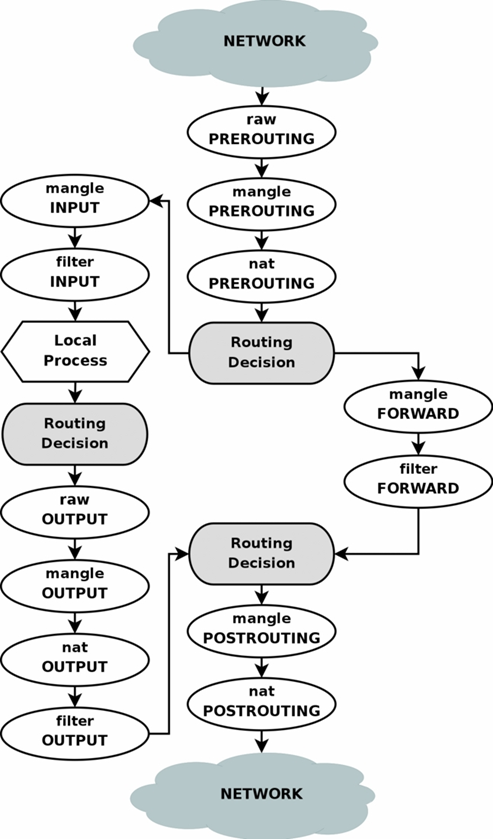

• Summary of the tables and chains a packet will traverse in iptables.

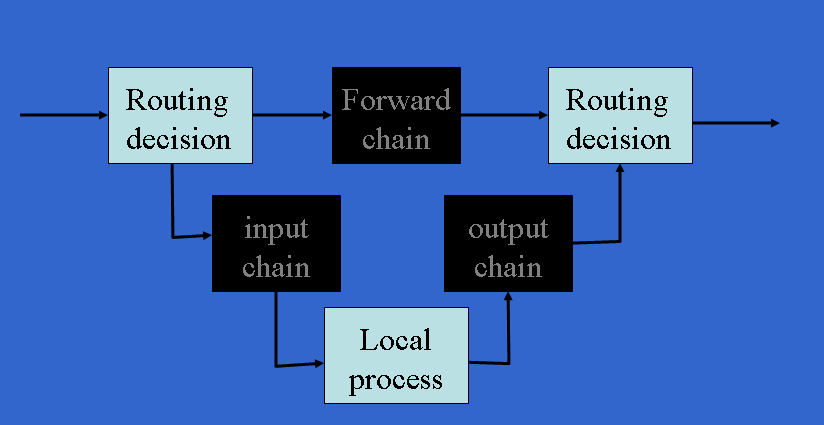

FILTER TABLE CHAINS: INPUT, OUTPUT, FORWARD

FILTER TABLE

• In the filter table a packet will only go through 1 chain.
  • Packets created within the computer go through OUTPUT
  • Packets which need to be routed from one eth device to another eth device go through FORWARD.
  • Packets received by the computer for processing locally go through INPUT

A Chain

• Each chain is made up of 0 or more rules.
• A rule is a set of tests and an action.
• If the tests are all true then the action is performed.
• If a test is partially or completely false then the next rule is looked at instead.
• If all the rules are used up without an action taking place, then the chain POLICY is done instead (i.e. a default rule).

Tests

• Each rule has 0 or more tests.
• There are many tests possible, such as:
  • Is this TCP?
  • Is this from 10.0.0.5?
  • Is this from port 22?
  • Is this going to port 23?
  • Is this going to ip 50.0.0.1?
  • Am I receiving packets faster than 10 per second?
  • Which interface is it going out/in on?
• Remember you can combine these tests, e.g. TCP and from port 22.

Actions

• If all the tests are true then the action is carried out.
• Some actions are terminating, meaning that once they are done no more rules are looked at.
• A few actions are non-terminating. This is useful if you want to say print a message if the test is true, but continue on with the next rule anyway.
• Example actions are:
  • DROP - delete a packet immediately and terminate
  • ACCEPT - the packet is good and terminate
  • REJECT - delete the packet and terminate, but send back an ICMP message to the sender
  • LOG - print to syslog a message and move onto the next rule.

Some tests:

• Is this TCP ? -p tcp
• Is this from 10.0.0.5? -s 10.0.0.5
• Is this from port 22? --sport 22
• Is this going to port 23? --dport 23
• Is this going to ip 50.0.0.1? -d 50.0.0.1
• Is this going out on eth0? -o eth0
• Is this coming in from eth0? -i eth0

Setting the policy

$ iptables -P INPUT ACCEPT
$ iptables -P OUTPUT ACCEPT
$ iptables -P FORWARD DROP

• This is a typical unsecured machine configuration. Typical machines only have 1 eth device, so don't forward. Otherwise, all packets are allowed.

Editing firewalls

• iptable does allow you to edit firewalls dynamically.
• However, this is very problematic and difficult.
• Instead, I recommend putting all your rules in a file and running that file to change the firewall.
• This allows you to use your favourite editor to write the firewall.
• At the start of the file, delete all current firewall rules in each table using "-F".

$ touch firewall
$ chmod +x firewall
$ vi firewall
/sbin/iptables -F INPUT
/sbin/iptables -F OUTPUT
/sbin/iptables -F FORWARD

# Set the default policies for the chains
/sbin/iptables -P INPUT DROP
/sbin/iptables -P OUTPUT ACCEPT
/sbin/iptables -P FORWARD DROP

• To load these rules do $ ./firewall
• However, don't do that yet. The default is DROP for INPUT. Without more rules you will be kicked out of the server never to return...
• This is bad if the server is 5 minutes walk away. But if it is 500miles away you are in trouble!
• This type of firewall is INGRESS ONLY. No rules for going out (OUTPUT/EGRESS). Kind of like the XP firewall...

Basic client machine

• Allow local machine to ssh and telnet out:

  # Standard INGRESS FILTER RULES, then
  iptables -t FILTER 	-A INPUT -p tcp --sport 22 -j ACCEPT
  iptables 		-A INPUT -p tcp --sport 23 -j ACCEPT

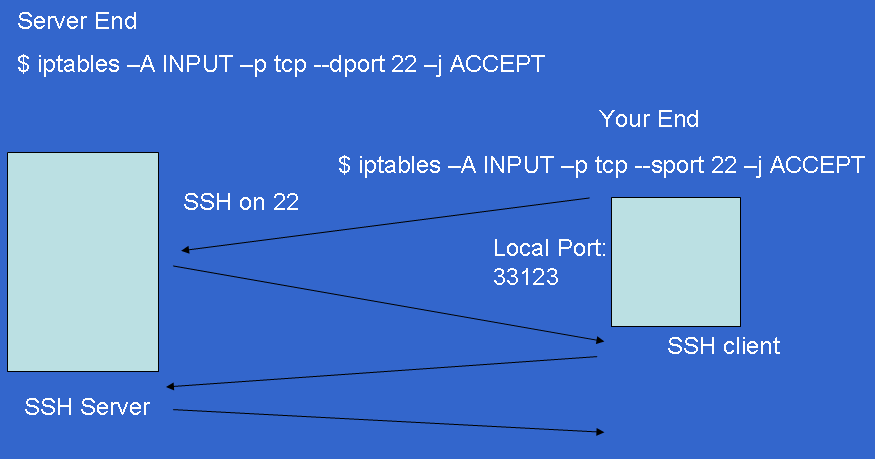

sport or dport

Basic client machine

• Allow local machine to ssh only to 10.0.0.1

  # Standard INGRESS FILTER RULES, then
  iptables -A INPUT -p tcp --sport ssh -s 10.0.0.1
  			-j ACCEPT


Add a rule to permit ping

• Anyone can ping this machine:

  # Add to the end of the file
  iptables -A INPUT -p icmp
  		--icmp-type echo-request -j ACCEPT


Add a rule to permit safe ping

• Anyone can ping this machine, but I will only respond if the ping requests are slower than 2 per second:

  # Add to the end of the file
  iptables -A INPUT -p icmp
  		--icmp-type echo-request
  		-m limit --limit 2/second -j ACCEPT


• Would protect a system from a "ping of death".

Monitor safe ping

• Anyone can ping this machine, but I will only respond if the ping requests are slower than 2 per second. Faster than that gets a logged message

  # Add to the end of the file
  iptables -A INPUT -p icmp
  		--icmp-type echo-request
  		-m limit --limit 2/second -j ACCEPT
  iptables -A INPUT -p icmp
  		--icmp-type echo-request -j LOG


Monitor Monitor safe ping

• Anyone can ping this machine, but I will only respond if the ping requests are slower than 2 per second. Faster than that gets a logged message, but don't log more than 10 per minute...

  # Add to the end of the file
  iptables -A INPUT -p icmp
  		--icmp-type echo-request
  		-m limit --limit 2/second -j ACCEPT
  iptables -A INPUT -p icmp
  		--icmp-type echo-request
  		-m limit --limit 10/minute -j LOG


Learning firewalls

• To learn firewalls safely most people play with INPUT and OUTPUT policy ACCEPT.
• All the examples rely on the last rule effectively DROPPING all packets.
• If you want to try default ACCEPT, then you have to invert all the rules...

  # Set the default policies for the chains
  /sbin/iptables -P INPUT ACCEPT
  /sbin/iptables -P OUTPUT ACCEPT
  /sbin/iptables -P FORWARD DROP


Basic client machine

• Allow local machine to ssh and telnet out, but using INPUT policy of ACCEPT:

  /sbin/iptables -P INPUT ACCEPT
  #
  iptables -A INPUT -p tcp --sport 22 -j ACCEPT
  iptables -A INPUT -p tcp --sport 23 -j ACCEPT
  iptables -A INPUT -p tcp -j DROP


Basic client machine

• Allow local machine to ssh only to 10.0.0.1, but using INPUT policy of ACCEPT:

  iptables -P INPUT ACCEPT
  #
  iptables -A INPUT -p tcp --sport ssh ! -s 10.0.0.1
  			-j DROP
  # Get to the end and the default in ACCEPT


Monitor Monitor safe ping

• Anyone can ping this machine, but I will only respond if the ping requests are slower than 2 per second. Faster than that gets a logged message, but don't log more than 10 per minute...
• using INPUT policy of ACCEPT

  iptables -P INPUT ACCEPT
  # Add to the end of the file
  iptables -A INPUT -p icmp --icmp-type echo-request
  	-m limit --limit 2/second -j ACCEPT
  iptables -A INPUT -p icmp
  	--icmp-type echo-request -m limit --limit 10/minute -j LOG
  iptables -A INPUT -p icmp
  	--icmp-type echo-request -m limit --limit 10/minute -j DROP


INPUT ACCEPT

• To be clear, a policy of ACCEPT is seriously silly...
• Good to learn on but wide open to attack.
• ACCEPT policy means you need rules to block. Anything you didn't think about is accepted.
• DROP policy means you need rules to allow. Anything you didn't think about is dropped.
• Security relies on a good policy, and that must be DROP.

DROP or REJECT

• DROP just blocks the packet.
• REJECT blocks and also sends an ICMP message to the sender saying it is blocked.
• DROP gives nothing away, and a hacker finds it difficult to get useful information about your network if packets are dropped.
• REJECT gives away information about your firewall ruleset.
• With DROP and IP, where packets are lossy, some protocols may retransmit a packet which you have dropped thinking it has been lost. This means dealing with the same packet again and again.
• A good rule: intranet traffic should be REJECT, internet traffic should be DROP.

subroutines

• Sometimes, complex rules in a single chain are difficult to manage.
• My server firewall has 200 rules...
• In the same way as programs benefit from subroutines, so do firewall rules.
• Subroutines are created with -N, deleted with -X, and can be reached with a target of "-j subroutinename" and returned with a target of "-j RETURN".

Monitor Monitor safe ping subroutine

• Anyone can ping this machine, but I will only respond if the ping requests are slower than 2 per second. Faster than that gets a logged message, but don't log more than 10 per minute... Use a SUBROUTINE

  iptables -X ECHO
  iptables -N ECHO
  Iptables -A ECHO -m limit --limit 2/second -j ACCEPT
  iptables -A ECHO -m limit --limit 10/minute -j LOG
  iptables -A ECHO -j DROP

  iptables -A INPUT -p icmp --icmp-type echo-request -j ECHO


Extra tests

• There are many other simple tests.
• Use man iptables to find more
• For example:
  • Stop apache surfing the web:

    		iptables -A OUTPUT state --state NEW -p tcp
       	 --sport 80 -m owner --uid-owner=apache -j DROP


  • Specify port ranges like:

    		--sport 137:139


  • Specify ip masks like:

    -d 10.0.0.1/24


Stateful Firewalls

Established: Stateful Firewall

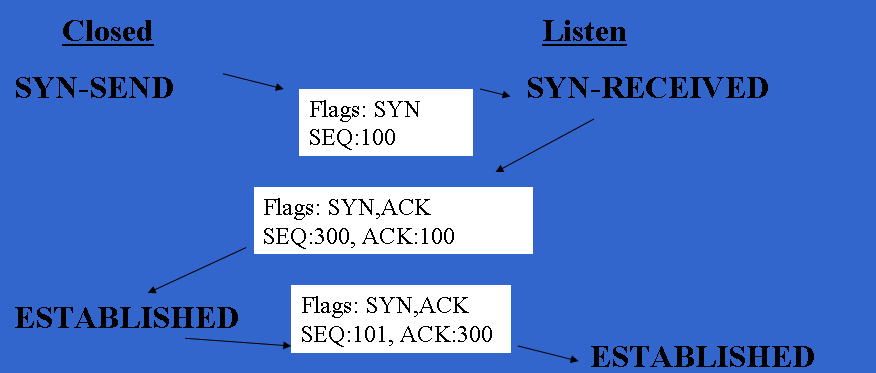

• In TCP/IP, TCP goes through a number of states:

Stateful Rules

• You can add iptables rules to detect what state a packet is in.
• This is REALLY useful for FORWARD tables.
• It also, in general, makes your firewall rules more reliable and much smaller, even in INPUT and OUTPUT.

Rules based on network state

• Packets can be in a number of different states:
  • NEW - a packet which starts a new connection
  • RELATED - new connection, but part of an old session
  • ESTABLISHED - connection already running
  • INVALID - something else (?)

    > iptables -A INPUT -i eth+ -m state --state RELATED,ESTABLISHED -j ACCEPT


Basic Stateful FORWARDING

• You are running your firewall machine with 2 network cards, eth0 and eth1.
• Eth0 connects to the internet, Eth1 to the intranet.
• In this regard Eth1 is a gateway for your local network.

• Eth0 is 10.0.1.1/24, Eth1 is 10.0.2.254/24
• You have two servers in your intranet.
  • M1 is 10.0.2.1/24, running an ssh server
  • M2 is 10.0.2.2/24, running an http server
• GW Firewall FORWARD would be:

  iptables -F FORWARD
  iptables -P FORWARD DROP
  iptables -A FORWARD -m state --state RELATED,ESTABLISHED -j ACCEPT
  iptables -A FORWARD -p tcp -i eth0 --dport ssh -d 10.0.2.1 -j ACCEPT
  iptables -A FORWARD -p tcp -i eth0 --dport http -d 10.0.2.2 -j ACCEPT


Egress filtering

• So far it is normal to see ACCEPT as the default policy for OUTPUT.
• However, this is not as secure as having a DROP policy.
• DROP as the policy in OUTPUT is called egress filtering.
• Although easy to completely mess up it is no harder than INPUT DROP policy.
• It limits OUTPUT packets to only those which you explicitly define.
• It could help reduce hacking attempts, and the spread of viruses.

Complete EGRESS Example

• Configure a non-routing server firewall which runs telnet and http servers. Users on the server can ssh out. Use EGRESS filtering.

  /sbin/iptables -F INPUT
  /sbin/iptables -F OUTPUT
  /sbin/iptables -F FORWARD
  /sbin/iptables -P INPUT DROP
  /sbin/iptables -P OUTPUT DROP
  /sbin/iptables -P FORWARD DROP


  iptables -A INPUT -m state --state RELATED,ESTABLISHED -j ACCEPT
  iptables -A INPUT -m state --state NEW -p tcp --dport telnet -j ACCEPT
  iptables -A INPUT -m state --state NEW -p tcp --dport http -j ACCEPT
  iptables -A OUTPUT -m state --state RELATED,ESTABLISHED -j ACCEPT
  iptables -A OUTPUT state --state NEW -p tcp --dport ssh -j ACCEPT


Other Firewall Ideas

• Block private IPs leaving the gateway for the internet:

  iptables -A FORWARD -o eth0 -s 192.168.0.0/16 -j DROP
  iptables -A FORWARD -o eth0 -s 172.16.0.0/12 -j DROP
  iptables -A FORWARD -o eth0 -s 10.0.0.0/8 -j DROP


• Only the loopback device can have IPs 127.0.0.1/8
• Blocking packets with a source port of smtp cuts down on viruses if the machine has no email server.
• Block netbios (ports 136/137) leaving for the internet.

Discussion

• How would iptables firewall rules, combined with a Linux based router, compare with a custom firewall appliance, such as a Cisco ASA5500?

Discussion

• Here are some past exam questions you should now be able to answer:

Question 1

Question 2

iptables -P INPUT drop
iptables -A INPUT -m state --state 				RELATED,ESTABLISHED -j ACCEPT
iptables -A INPUT -p tcp --sport ssh -j 			ACCEPT

Linuxzoo created by Gordon Russell.
@ Copyright 2004-2025 Edinburgh Napier University
