DNS

Basics

• DNS - Domain Name Service
• Translates between machine names and IP.
• Two main types
  • Forward (domain to IP translation)
  • Reverse (IP to domain translation)

Terminology

• Zone
  • A collection of hostnames and their IPs
• Nameserver
  • The server which responds to DNS queries. A question could be "Give me the IP of grussell.org".
• Authoritive Nameserver
  • The server which has all the information for a zone stored locally
• Recursive Nameserver
  • If the nameserver is not authoritive for a zone, it is willing to go and ask other nameservers until it has asked an authoritive nameserver for the answer on your behalf. It then tells you the answer to your query.
• Resolver
  • The part of an OS which sends the DNS questions to nameservers. It's a library which other programs will use. For instance, "ping grussell.org" would ask the resolver to "resolve" grussell.org. It goes on to ask a nameserver for the answer.
• Delegation
  • Sometimes a server does not know how to answer a query, but knows a server that can. The process of delegation effectively says that another server is delegated to answer your query, and you need to speak to them instead.
• Resource Record
  • Part of an answer to a query. An answer could be the IP for grussell.org, but there are other resource records (e.g. for email delivery and delegation).

WHOIS

• When you register a domain, you have to give information to the registrar.
• This includes a contact name, address, and other contact details.
• You also have to give at least 2 authoritive nameservers.

  $ whois napier.ac.uk
  Registered For:
          Napier University
  Servers:
          dns0.napier.ac.uk       146.176.1.5
          dns1.napier.ac.uk       146.176.2.5
  Registrant Address:
          Napier University
          C&IT
          219 Colinton Road~Edinburgh


DNS Distributed Database

• By way of an example, consider the following:

  		$ ping www.napier.ac.uk


• The resolver in Linux is asked to find out the IP for www.napier.ac.uk
• The resolver contacts its local recursive nameserver and send it a DNS query.
• The resource record needed to translate a domain name into an IP is known as an "A" record.

• Step 1: The resolver contacts the local ISP nameserver.

• It is not authoritive. If it has been asked before it might have cached the answer.
• In this case, no cached answer...

• Step 2: ISP nameserver asks a root server...
• There are more than a dozen root servers.
• Their job is to direct your local nameserver to a nameserver which will help resolve the request.
• The root servers are pre-configured in the local nameserver, with names like:

  a.root-servers.net.
  b.root-servers.net.
  c.root-servers.net.
  d.root-servers.net.

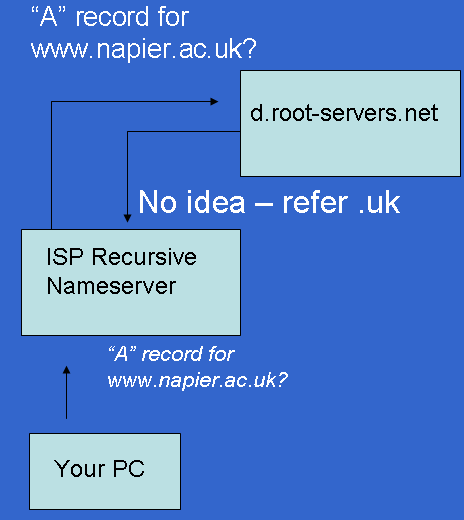

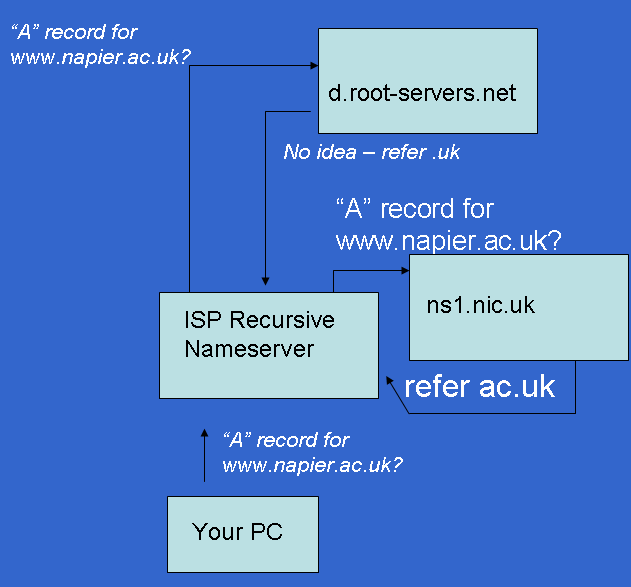

• Step 2: ISP nameserver asks a random root server...

• It doesn't know either, but offers a referral to nameservers which can help.

• The root server refers to another set of servers which can answer the query:
• NS are nameserver resource records.
• Note that you also get the A records of the nameservers for free.
• This extra information is referred to as the glue records.
• Without this we would have to look them up with a different query, so this saves time...

  uk.                     172800  IN      NS      ns1.nic.uk.
  uk.                     172800  IN      NS      ns2.nic.uk.
  uk.                     172800  IN      NS      ns3.nic.uk.
  uk.                     172800  IN      NS      ns4.nic.uk.
  ;; ADDITIONAL SECTION:
  ns1.nic.uk.             172800  IN      A       195.66.240.130
  ns2.nic.uk.             172800  IN      A       217.79.164.131
  ns3.nic.uk.             172800  IN      A       213.219.13.131
  ns4.nic.uk.             172800  IN      A       194.83.244.131


• Step 3: ISP nameserver asks one of the referral nameservers at random.

• Another referral.
• Receive NS list for ac.uk nameservers

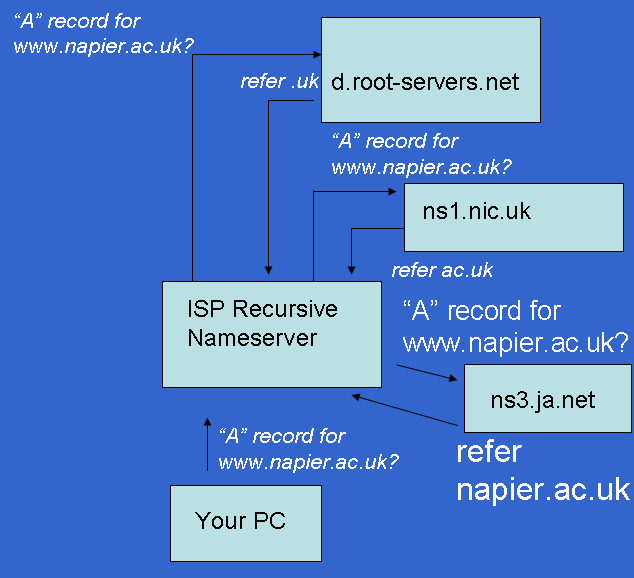

• Step 4: ISP nameserver asks one of the referral nameservers at random for.

• Another referral.
• Receive NS list for napier.ac.uk nameservers

• The ja.net nameserver responded with the authoritive nameservers for Napier.
• The last step is to ask one of the authoritive nameservers for www.napier.ac.uk

  napier.ac.uk.           86400   IN      NS      dns1.napier.ac.uk.
  napier.ac.uk.           86400   IN      NS      dns0.napier.ac.uk.

  ;; ADDITIONAL SECTION:
  dns0.napier.ac.uk.      86400   IN      A       146.176.1.5
  dns1.napier.ac.uk.      86400   IN      A       146.176.2.5

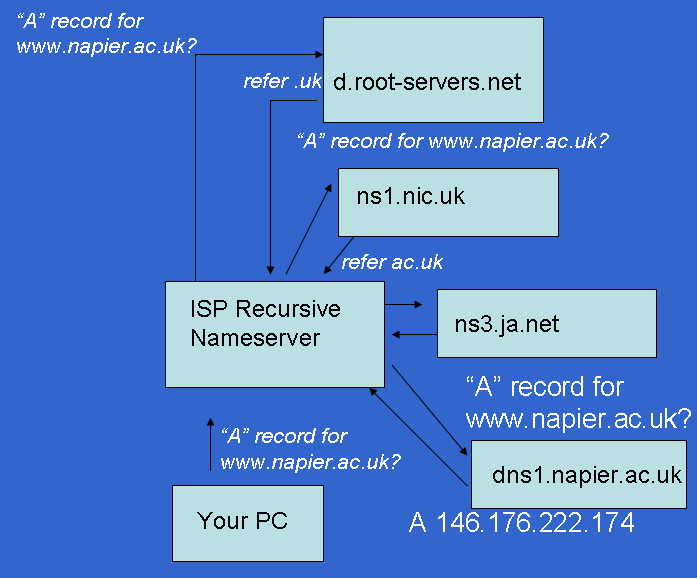

• Step 5: ISP nameserver one of the napier nameservers

• Finally it gets the answer...

• The answer from Napier was AUTHORITIVE.

• It is cached in the ISP.
• The cached version is returned to you.
• As it is cached, it is non-authoritive.

Manual Lookups

• If we are running our own DNS servers, or just having trouble making the resolver work, we can make our own queries using "dig"

  $ whois napier.ac.uk
   Domain servers in listed order:
   dns0.napier.ac.uk 146.176.1.5
   dns1.napier.ac.uk 146.176.2.5


> dig www.napier.ac.uk @dns0.napier.ac.uk
www.napier.ac.uk.       86400   IN      A       146.176.222.174

;; AUTHORITY SECTION:
napier.ac.uk.           86400   IN      NS      dns0.napier.ac.uk.
napier.ac.uk.           86400   IN      NS      dns1.napier.ac.uk.

;; ADDITIONAL SECTION:
dns0.napier.ac.uk.      86400   IN      A       146.176.1.5
dns1.napier.ac.uk.      86400   IN      A       146.176.2.5

Reverse Lookup

• Reverse is working out that given 146.176.222.174, the host is www.napier.ac.uk.
• A special domain name is used for IP to Domain Name translation
• The domain is the IP in reverse, ending with IN-ADDR.ARPA
• You need to take the first 3 elements of the IP first to find the right server, then query that server with the full IP.
• The resource record for reverse DNS is PTR.

> dig 222.176.146.IN-ADDR.ARPA
...
;; AUTHORITY SECTION:
222.176.146.IN-ADDR.ARPA. 86400 IN      SOA     dns0.napier.ac.uk. root.central.napier.ac.uk. 200808271 28800 7200 604800 86400

> dig 174.222.176.146.IN-ADDR.ARPA @dns0.napier.ac.uk -t any
...
;; ANSWER SECTION:
174.222.176.146.IN-ADDR.ARPA. 86400 IN  PTR     www.napier.ac.uk.

Linux DNS

Resolver in Linux

• You now know how DNS forward and reverse works. But you do not have to do all the repeated queries yourself!
• The resolver looks after all the lookups.
• As an example, consider a command > ping www.linuxzoo.net
• The computer needs to find the IP number...

$ cat /etc/host.conf

order hosts,bind

• This is the schemes used to translate DNS.
  • hosts - use the /etc/hosts file
  • bind - use dns

/etc/hosts

• This file is the simplest lookup.
• It is called "host" resolution.
• The file has lines like 127.0.0.1 localhost.localdomain localhost
• It is IP, then hostname, then aliases for the host.
• Its fast and simple, but only lists machines you edit yourself into the file.
• It is good for "kickstarting" finding key machines.

> cat /etc/resolv.conf

search linuxzoo.net net
nameserver 10.200.0.1

• Not found in /etc/hosts? Check resolve.conf and use bind.
• nameserver - who to ask (our nameserver)
• search - add these to the host if not found.
  • Looking for www.linuxzoo? This search would try "www.linuxzoo", "www.linuxzoo.linuxzoo.net", "www.linuxzoo.net". If still not found then fail.
  • This is a convenience for users.

> dig www.linuxzoo.net @10.200.0.1

• Ask your nameserver.
• If nameserver knows the answer, return it.
• If unknown, nameserver recurses (plus store the answer in a cache).
• If no one knows after recursion, return a failure.
• If resolv.conf has multiple nameserver entries, each one is tried until all are tried or the answer is returned from one of them.

Your own nameserver

• You might want to run your own nameserver if:
  • You perform lookups frequently and want to cache the queries locally
  • You want to query the root servers directly without having to talk via a local nameserver.
  • You want to add your own entries to DNS
• You run your own domain and want to control your DNS entries directly.
• You have local IPs and want to name them on your own network.

Nameserver daemons

• The most popular is "named".
• It is installed on the UML simulations.
• It is part of the bind9 distribution (www.isc.org).
• It is popular, but other services are available.
  • Common systems are often targetting for hacking attacks.
  • NAMED is often cited as a security problem.
  • It needs to be patched often.
  • It should be secured with additional security technology (my opinion). One way to do this is to use a chroot. Fedora has started to focus more on SELinux as its general security solution, and this can be used as an alternative to chroot (or in addition). For our purposes we will use SELinux security.

What is a chroot

• Many Linux services can be run "chroot".
• This gives a new "/" directory just for that service.
• It contains only the minimum files and directories.
• The contents are (when possible) owned by a different user than the one who owns the service.
• The service should not be executed as root.
• Service runs as a user who does nothing else but run that service.
• Hack the service and you are stuck in a directory with little contents, you can change very little, with a user which can do nothing... If possible, always run services in a chroot!

However, in our experiments we will not be using a chroot for additional security. Instead we will use SELinux. This gives the kernel a set of rules which named must obey, including what files can be opened and what sort of network connections can be made. Fortunately this is all pre-configured in Fedora and thus completely invisible to us as administrators.

RNDC

• RNDC allows you to administer NAMED remotely.
• Obviously this has to happen with some security.
• RNCD uses a signed key to validate its security credentials.

In a non-chroot solution this needs only to be stored in /etc/rndc.key If you are (for some reason) using a chroot it must also be copied to /var/named/chroot/etc/rndc.key

Generate the key

• In a normal installation, you should generate your own key.
• In linuxzoo, you get the key generated automatically. This is a good thing, as generating the key in linuxzoo turns out to be problematic. DON'T.
• However, if you want to generate your own key (ignoring my advice) then: $ rndc-confgen -a -b 128 -r keyboard
  • -b 128 - Sets the bits to 128 (fast but weak)
  • -r keyboard - Random keys require "entropy". Normally done with /dev/random, but in UML this does not work well. This option asks you to type randomly for a while, and use your keyboard rhythm to generate the random number!
  • The only time you want to do this in linuxzoo is if you deleted the key file!

/etc/named.conf

• Really two parts - options and zone
  • Options allow run time configurations and global defaults to be set.
  • Zone entries allow us to set up a forward or reverse entry for a domain.

Master and slave

• There are two distinct types of zone:
  • Master- they have the zone definitions and you can edit that information if you wish
  • Slave- they copy the zone definition automatically from the master. Their copy is read only, so you cannot edit the records on a slave.
• Slave nameservers are needed to give DNS higher reliability and redundancy. You edit on a master and the change is copied to all your slaves. Slave configuration is not considered further here.
• The master is often called a PRIMARY, and any slaves called SECONDARIES. But these names are badly abused, so stick with master/slave.

zone "." IN {
        type hint;
        file "named.ca";
};

options {
        directory "/var/named";
        forward only;
};

• Nothing exciting in this part.
• Note that in linuxzoo, DNS requests to the roots (or anywhere else) are intercepted my the linuxzoo filewall and redirected to 10.200.0.1.
• This keeps the load on the root servers down, and makes it harder for people to use linuxzoo to hack the planet...
• Also allows my name service to falsify records - needed to make things work right in the UMLs.

zone "localhost" IN {
        type master;
        file "localhost.zone";
        allow-update { none; };
};

• The file localhost.zone gives forward resolving for the domain "localhost".

zone "0.0.127.in-addr.arpa" IN {
        type master;
        file "named.local";
        allow-update { none; };
};

• The named.local file give reverse lookups for the 127.0.0.0/24 IP range.

localhost.zone

$TTL    86400
$ORIGIN localhost.
@                       1D IN SOA       @ root (
                                        42              ; serial (d. adams)
                                        3H              ; refresh
                                        15M             ; retry
                                        1W              ; expiry
                                        1D )            ; minimum

                        1D IN NS        @
                        1D IN A         127.0.0.1

named.local

$TTL    86400
@       IN      SOA     localhost. root.localhost.  (
                                      1997022700 ; Serial
                                      28800      ; Refresh
                                      14400      ; Retry
                                      3600000    ; Expire
                                      86400 )    ; Minimum
              IN      NS      localhost.

1       IN      PTR     localhost.

Example : grussell.org, in IP 50.1.1.0/24

• /etc/named.conf zone for this:

  zone "grussell.org" IN {
          type master;
          file "grussell.zone";
          allow-update { none; };
  };
  zone "1.1.50.in-addr.arpa" IN {
          type master;
          file "grussell.rev";
          allow-update { none; };
  };


$ cat /var/named/grussell.zone

$TTL    86400
$ORIGIN grussell.org.
@                       	1D IN SOA       ns1 admin.grussell.org. (
                                        2004101701     	 ; serial
                                        3H              	; refresh
                                        15M             	; retry
                                        1W              	; expiry
                                        1D )            	; minimum

                       	1D IN NS      ns1
                        1D IN A       50.1.1.1
www                     CNAME         grussell.org.
ns1			1D IN A       50.1.1.10

$ cat /var/named/grussell.rev

$TTL    86400
@       IN      SOA     ns1.grussell.org. admin.grussell.org.  (
                                      1997022700 ; Serial
                                      28800      ; Refresh
                                      14400      ; Retry
                                      3600000    ; Expire
                                      86400 )    ; Minimum
      	IN      NS      ns1.grussell.org.
1	IN      PTR     grussell.org.
10  	IN      PTR     ns1.grussell.org.

MX (Mail Exchange) records

host1		IN	MX	10	host1
			IN	MX	20	backuphost
			IN	MX	30	mx.easydns.com.

• Priority goes to lowest number.
• No dot and end - add the origin.

Load Balancing

• With 1 server providing a service, only that server can handle requests.
• Multiple servers can handle requests in parallel.
• But how can a single server name be made automatically share out requests to multiple servers?
• Load balancing does this...

Email server balancing

host1		IN	MX	10	smtp1
			IN	MX	10	smtp2
			IN	MX	10	smtp3
smtp1		IN	A		10.0.0.1
smtp2		IN	A		10.0.0.2
smtp3		IN	A		10.0.0.3

• Equal priority MX records are usually randomly utilised
• Selection mechanism is mail application dependent

Email server balancing with A

host1		IN	MX	10	smtp
smtp		IN	A		10.0.0.1
			IN	A		10.0.0.2
			IN	A		10.0.0.3

• Chosen using rrset-order (default is random)
• Make sure reverse of .1,.2,.3 -> smtp.domain.com

Server balancing with A

www		IN	A		10.0.0.1
			IN	A		10.0.0.2
			IN	A		10.0.0.3
ftp			IN	A		10.0.0.10
ftp			IN	A		10.0.0.11

• Chosen using rrset-order (default is random)
• The effect of caching needs to be considered
• The distribution of load needs to be considered

DNS record types

• SOA - Start of authority, gives params for zone
• A6 - handle ipv6 references
• NS - useful in delegation but basically ignored.
• CNAME - an alias
• HINFO - Hardware and OS being ran.
• RP - who to send emails to.
• TXT - useful text - for instance can be used to certify email server IP number for some span detection software.

Capturing DNS

Demonstration of a DNS Query

• To capture packets, use tcpdump.
• It has many options (see man tcpdump).
• Here, we want to capture just packets to do with DNS (port 53), so "port 53".
• tcpdump likes to translate ips into names, and will generate its own DNS lookups. To stop that use "-n".

  $ tcpdump -n port 53 > dump &
  $ dig www.napier.ac.uk
  $ kill -9 %1


Dump file

$ cat dump
17:48:54.147146 IP 146.176.162.6.40501 > 146.176.2.5.domain:  6869+ A? www.napier.ac.uk. (34)
17:48:54.148326 IP 146.176.2.5.domain > 146.176.162.6.40501:  6869* 1/2/2 A 146.176.222.174 (120)

Discussion

Discussion

• Spot the error(s)

  $TTL    86400
  $ORIGIN broken.net.
  @                       	1D IN SOA       ns1 admin@grussell.org. (
                                          2004101701     	 ; serial
                                          3H              	; refresh
                                          15M             	; retry
                                          1W              	; expiry
                                          1D )            	; minimum

                         	1D IN NS      ns1
                          	1D IN A         10.0.0.1
  www                     	CNAME         broken.net.
  ns1			1D IN A 	     10.0.0.10.
  ns2.		1D IN A 	     10.0.0.11.


Discussion

• Here are some mock exam questions you should now be able to answer:

Question 1

• test.com maps to 1.0.0.1
• www.test.com is an alias to test.com
• email.test.com is 1.0.0.2
• A nameserver exists at 1.0.0.10
• Email to test.com goes to the email host.

Question 2

Copyright @ 2004-2012 Gordon Russell. All rights reserved.
